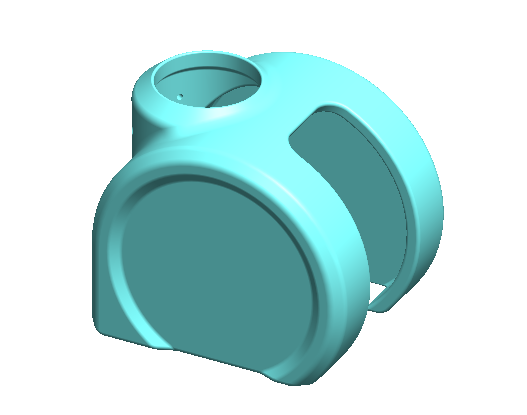

Caster Cover
Injection-molded caster wheel cover for X-Ray imaging medical cart.
Project background
The original caster cover for this X-Ray machine was boxy, material inefficient, and didn't allow for much maneuverability. The client asked us to redesign the cover so higher quality casters with swiveling and locking features could be used.
Company
Ergotron Inc.
Design Scope
Create a cover for a 5 inch swivel and locking caster. The solution should increase maneuverability features and decrease material usage and costs.
Program
Solidworks
Highlight
Design for Manufacturing

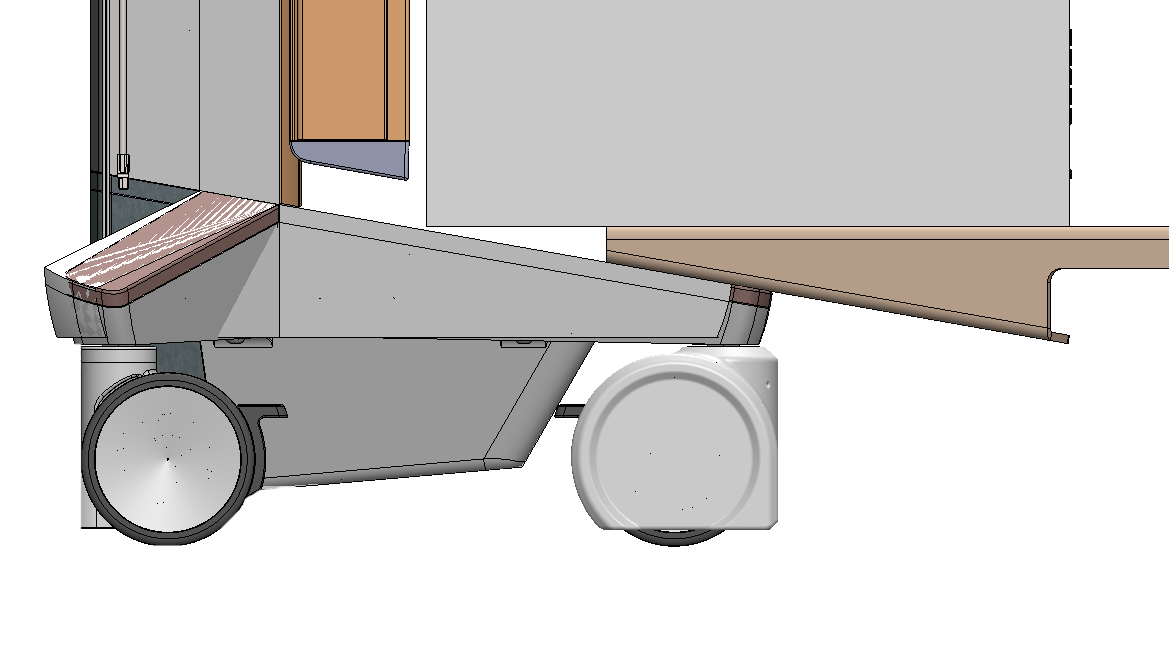

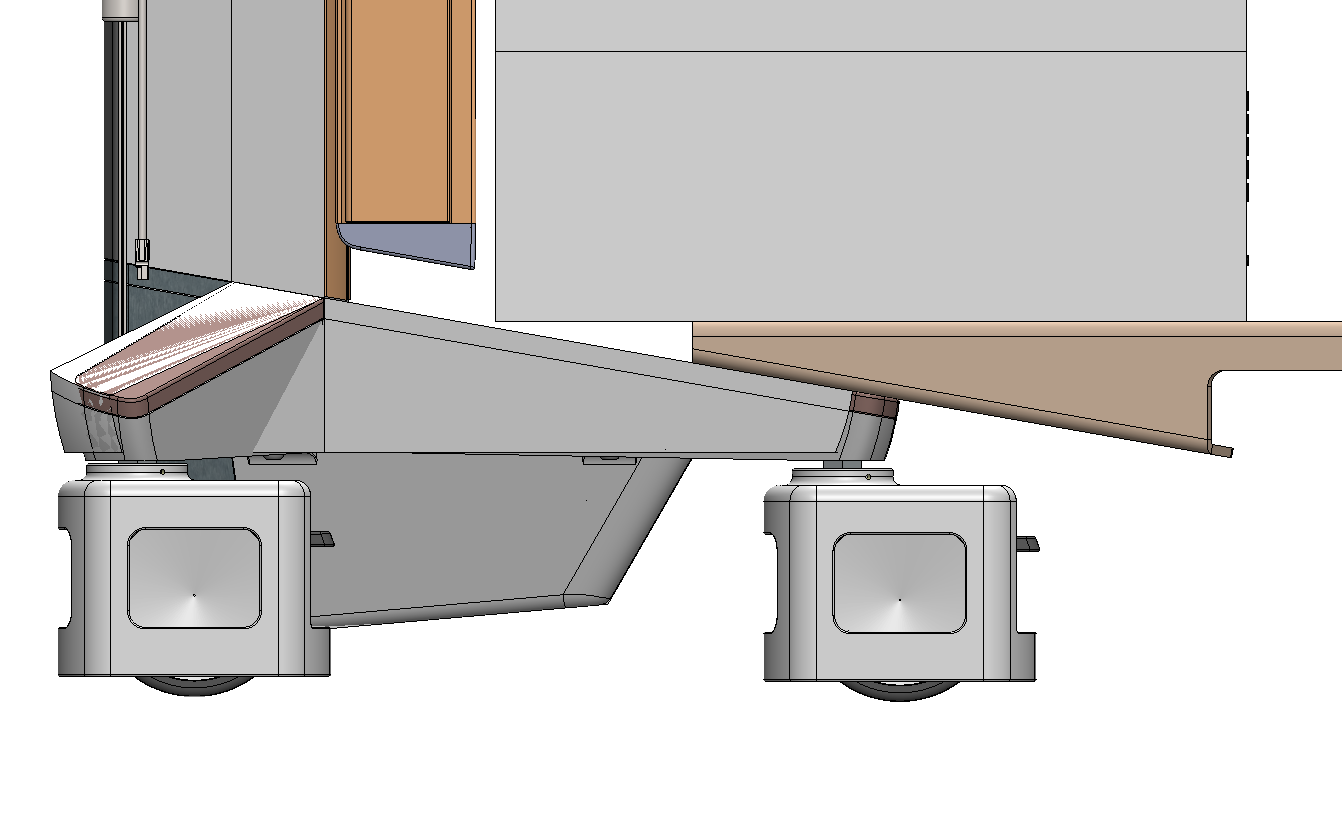

Before & After

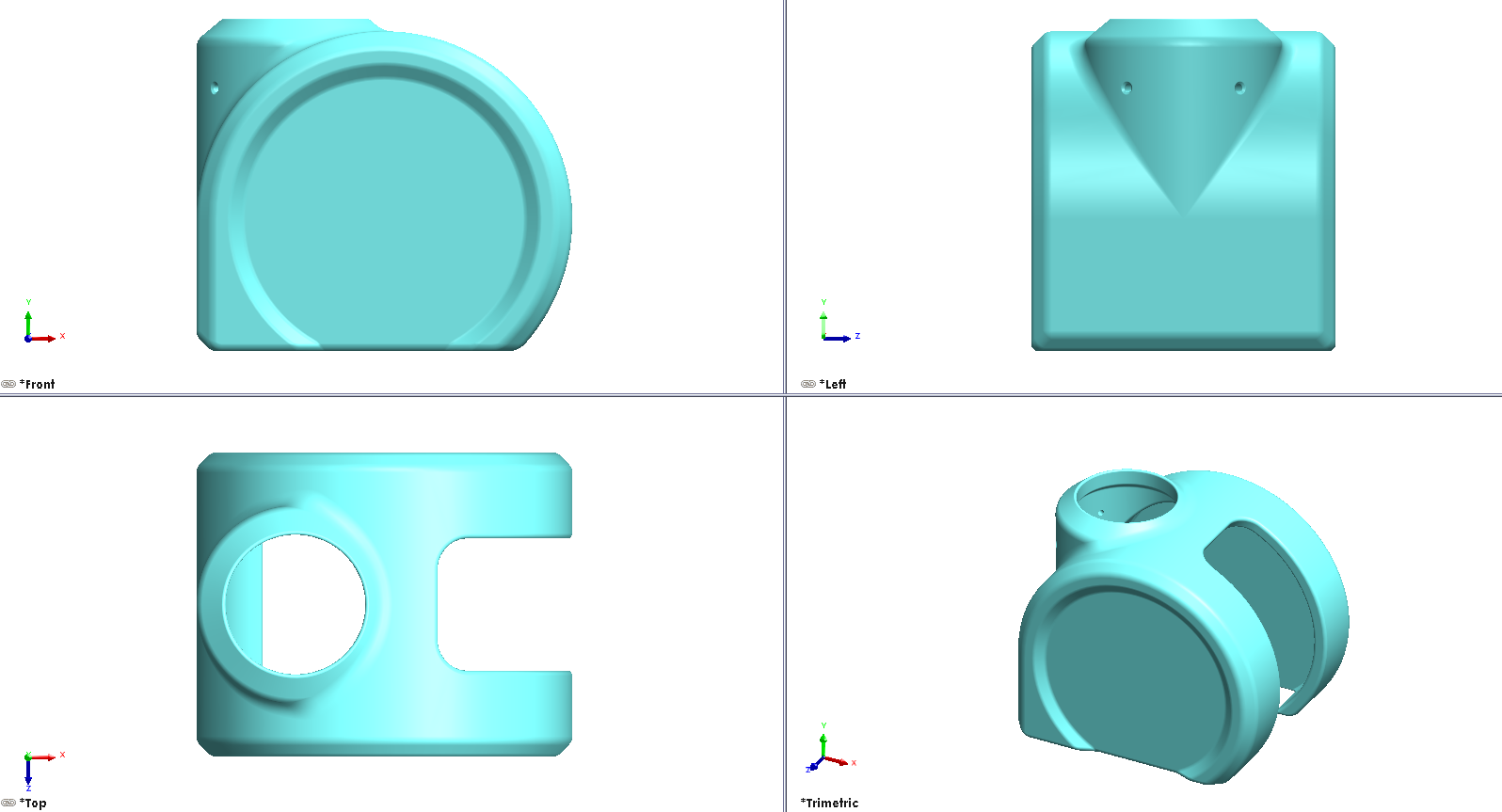

CAD Orthographics

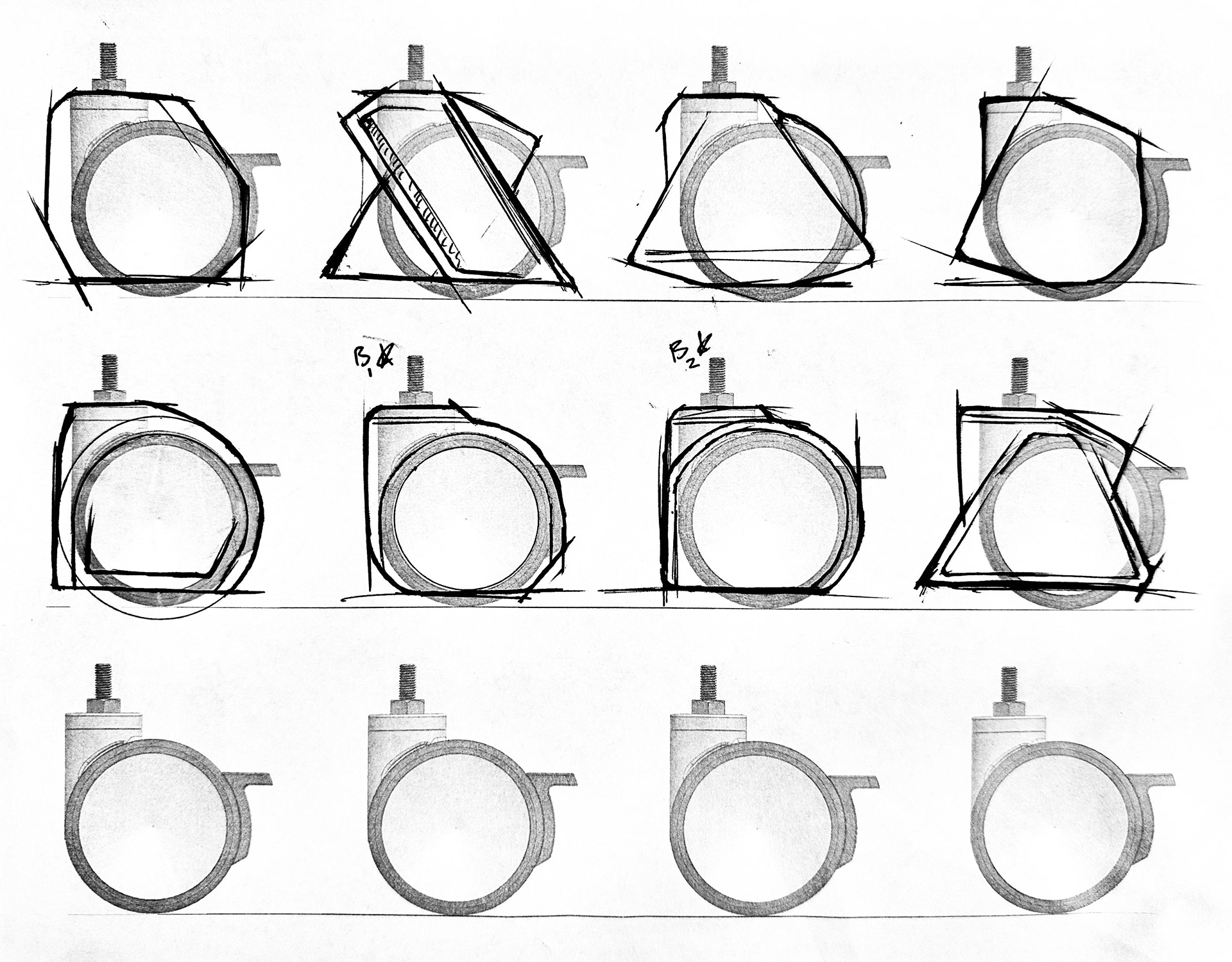

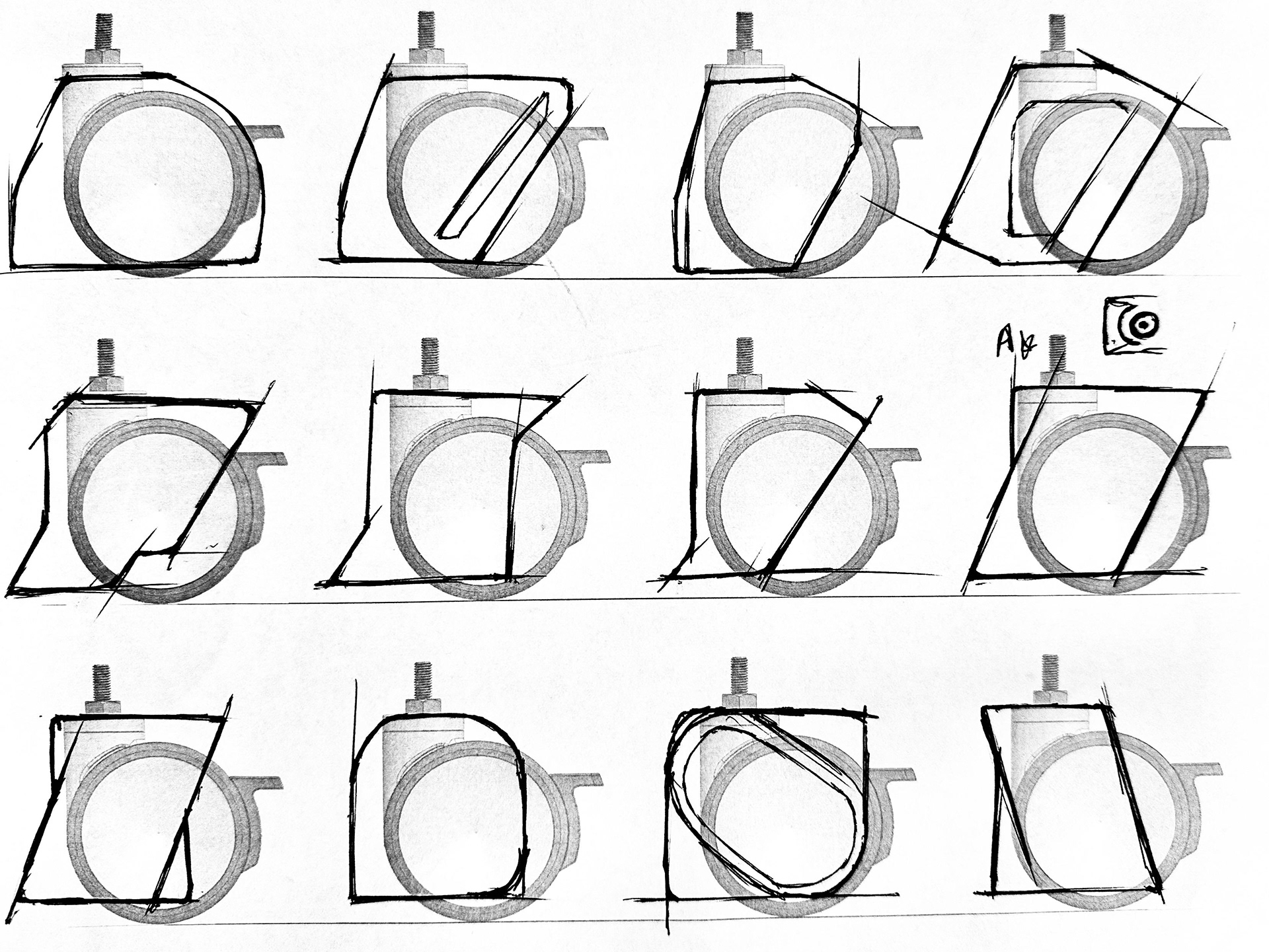

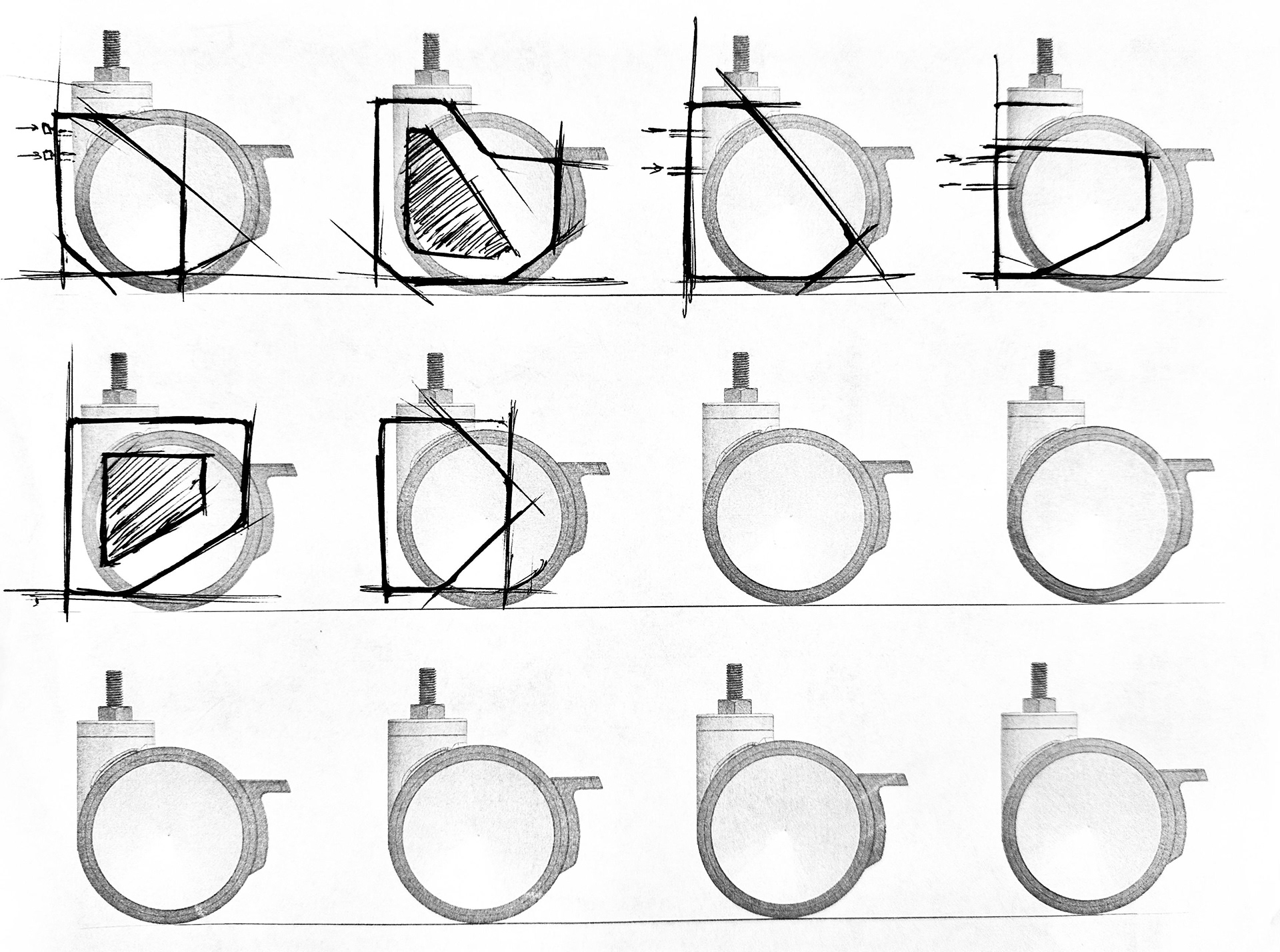

Ideation sketches
